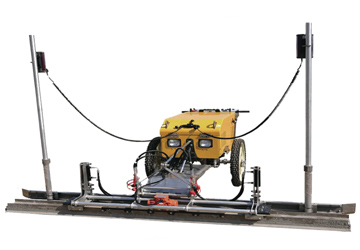

Walk Behind Laser Screed Machine
Jamshedji Constro Equipment is the leading and most reliable Walk Behind Laser Screed Machine manufacturer & exporter in Pune, Maharashtra.
Characteristics
- JAMSHEDJI is coming up with a new trend in industrial flooring. The Road way Laser Screed. Where huge areas of flooring is to be done this machine is used to do the flooring of maximum slab thickness 15 cm. Recommended speed is 5 m/min thus you can expect to cover 1800 m in a working period of 8 hours. The operator has a comfortable seat to reduce fatigue during operation. The operator has a control panel installed in front to inspect the result of floor easily. The Laser Screed can satisfy the construction requirement of large area and high plainness and levelness. We are attaching a brochure with all technical details and prices for your scrutiny.
Technical Specification
| Sr. No. | Model | JCMCWB |
|---|---|---|
| 1 | Engine | |
| Model | HONDA Generator Set | |
| Power | 2.0kW | |
| Fuel Tank | 14.5 L | |
| 2 | Running Device | |
| Drive | Electric Motor | |
| Running Type | Electric Control, Stepless Speed | Wheel | 3 Wheel, Solid Puncture-Proof Tyre |
| Running Speed | 0 – 36 m/min | |
| 3 | Screed Head | |
| Type | Electric Control, Self-Leveling | |
| Width | 2500mm | |
| Exciting Force | 500N | |
| Vibration Frequency | 50Hz | |
| 4 | Laser Control System | |
| Control type Micro Computer | Action Hand grip control, infinite variable speed | |
| 5 | Size And Weight | |
| Size | 2860 x 2622 x 1980mm | |
| Weight | 400 Kg |
